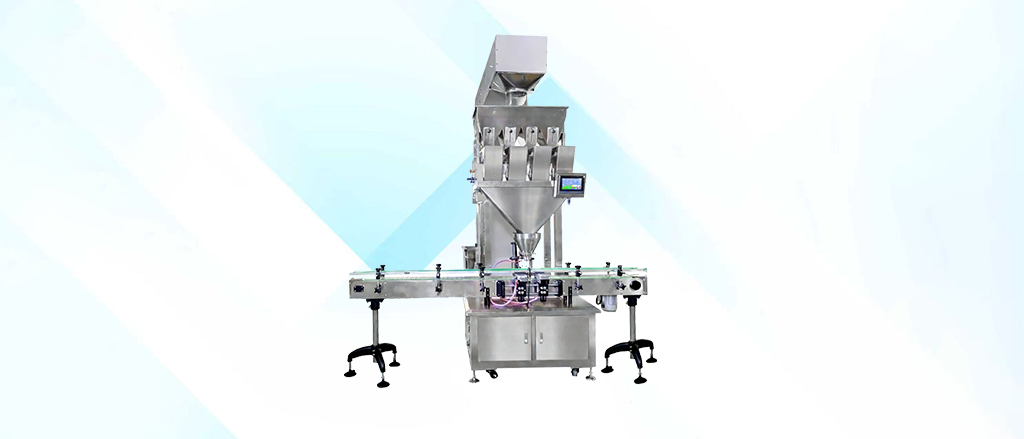

Automatic 4-Head Linear Weigher Granule Filling Machine
Automatic 4-Head Linear Weigher Granule Filling Machine
Automatic 4-Head Linear Weigher Granule Filling Machine
Automatic 4-Head Linear Weigher Granule Filling Machine

As a factory that has independently designed and produced packaging equipment since 2010, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging&filling requirements and we will provide you with the most suitable solution.

Whatsapp/Wechat/Phone: +86 13612606619

E-mail: sales@lakerpack.com

Contact Us
Common Output

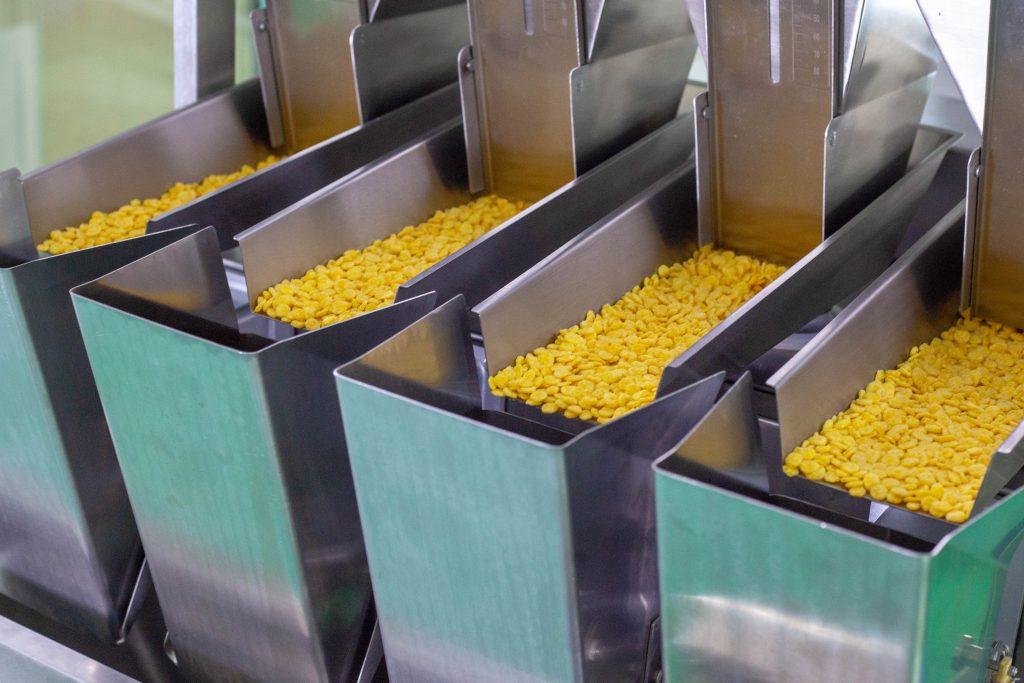

    • ⚖️ High-Precision 4-Head Linear Dosing: Engineered with an advanced 4-head linear weighing system that delivers high accuracy of ±1~3g across a dynamic weighing range of 20g to 2000g.

    • 🧩 4-Ingredient Recipe & Multi-Mixing: Uniquely capable of mixing up to 4 different ingredient categories per batch with memory storage for 20 preset product recipes, ideal for complex trail mixes, tea blends, and seasonal snacks.

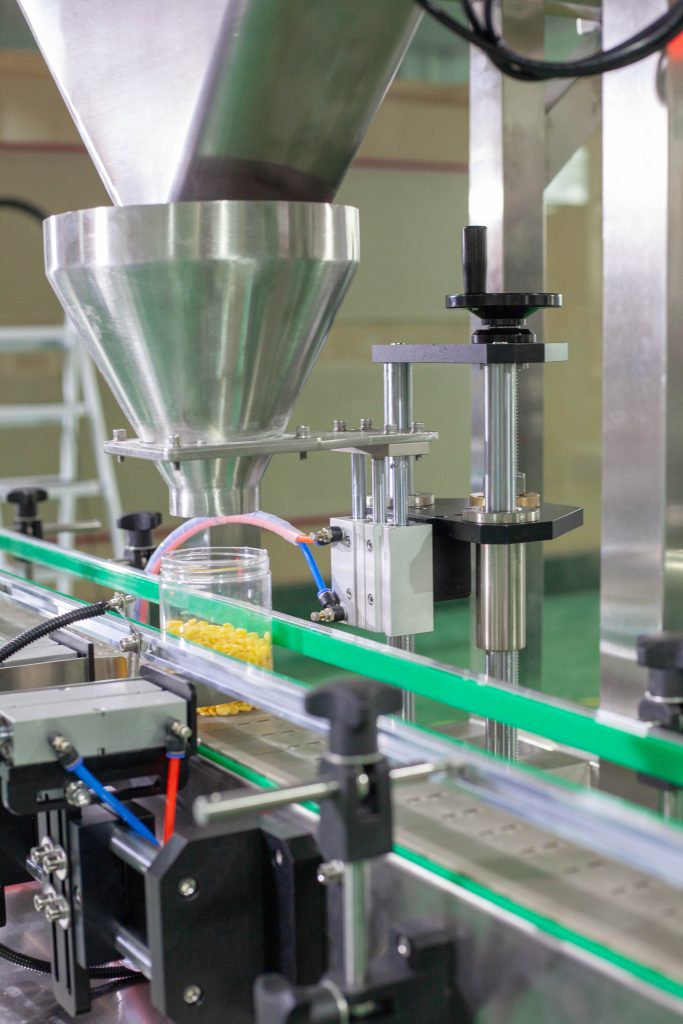

    • ⚡ Integrated 2m Conveyor Automation: Features a heavy-duty 2-meter conveyor system with automated container indexing, reaching smooth production speeds of 15–25 cans/min.

    • 🛢️ Generous Hopper & Smart PLC: Built with a spacious 3000ml hopper capacity and a user-friendly touchscreen interface, enabling instant recipe switching and precise vibration feeding control.

    • 🔌 Universal Plug-and-Play Power: Runs on standard single-phase AC 220V 50/60Hz with a compact footprint (L2000×W1000×H2000mm), perfect for seamless integration into existing processing operations.

Technical Parameter Specification
Model LK-QJ-00
Weighing Range 20 ~ 2000g
Weighing Accuracy ±1 ~ 3g
Filling Speed 15 ~ 25 cans/min
Conveyor Length 2m
Hopper Capacity 3000ml
Preset Material Recipes 20 Types
Max Ingredient Categories 4 Types (Recipe Mixing)
Power Supply Single Phase AC 220V, 50/60Hz
Machine Dimensions L2000 × W1000 × H2000mm
