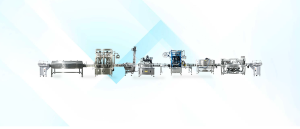

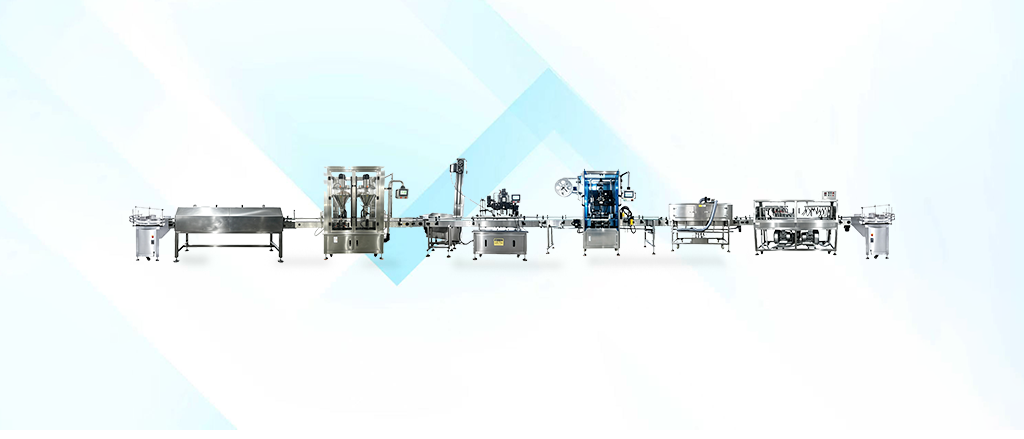

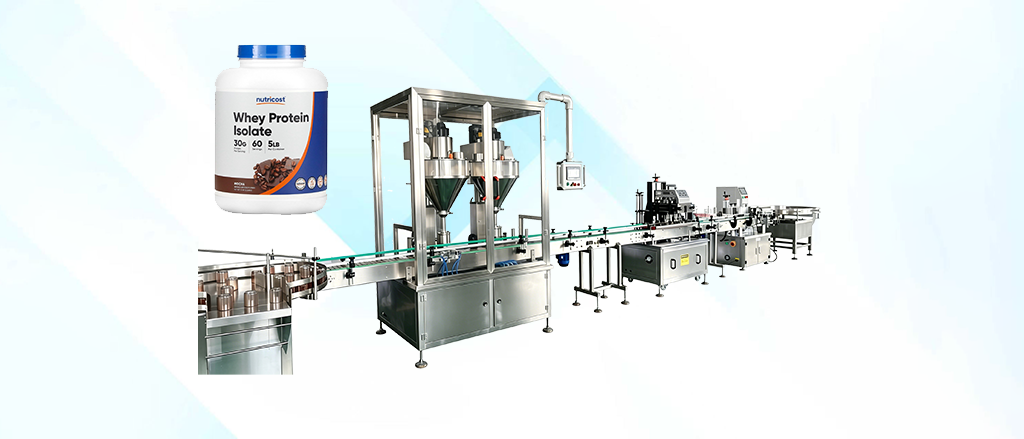

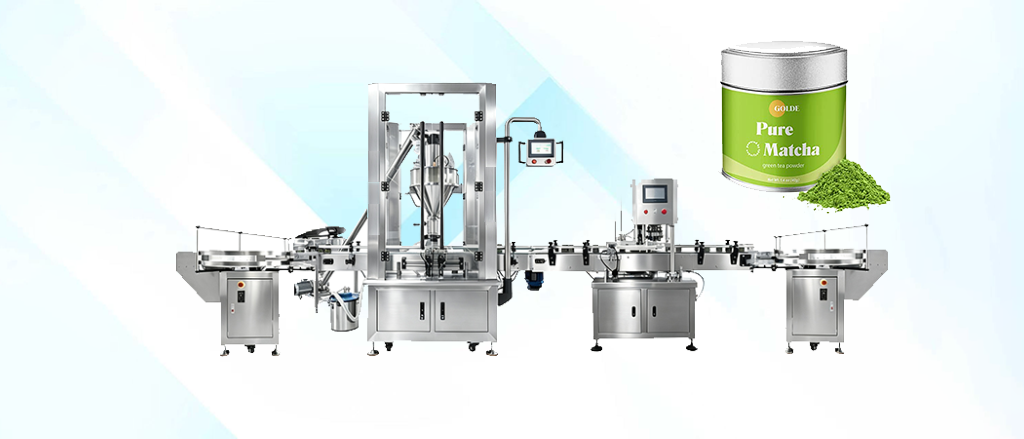

Full-Line Automation: Minimal Labor, Maximum Throughput
Go from raw bottles and loose powder to fully sealed, labeled, and retail-ready products without human intervention. This complete turnkey system seamless integrates every stage of production:
-

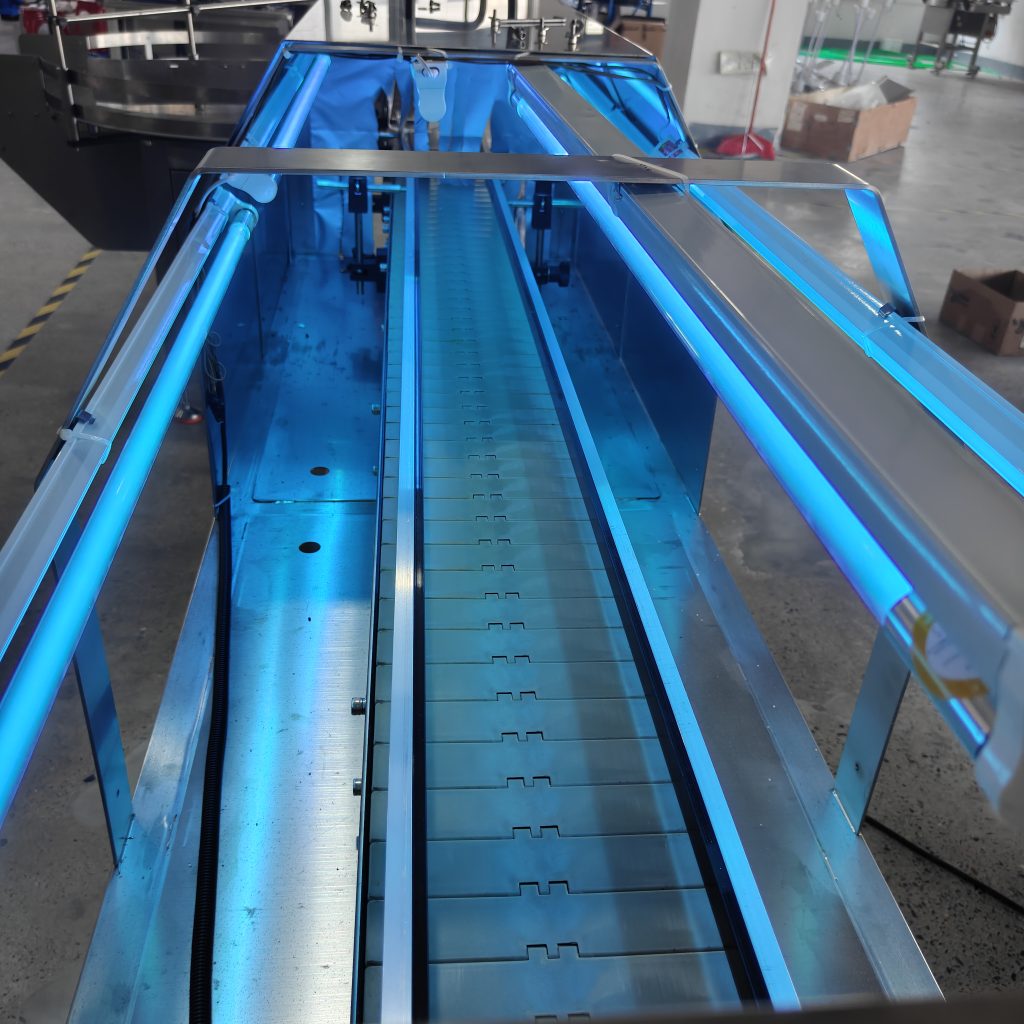

Preparation: Bottle Unscrambling & UV Sterilization
-

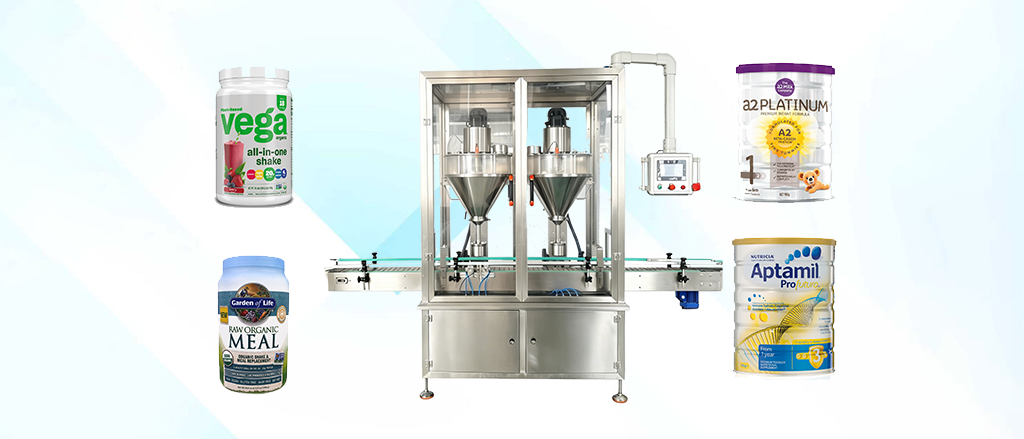

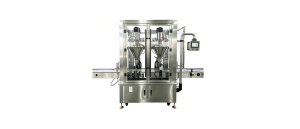

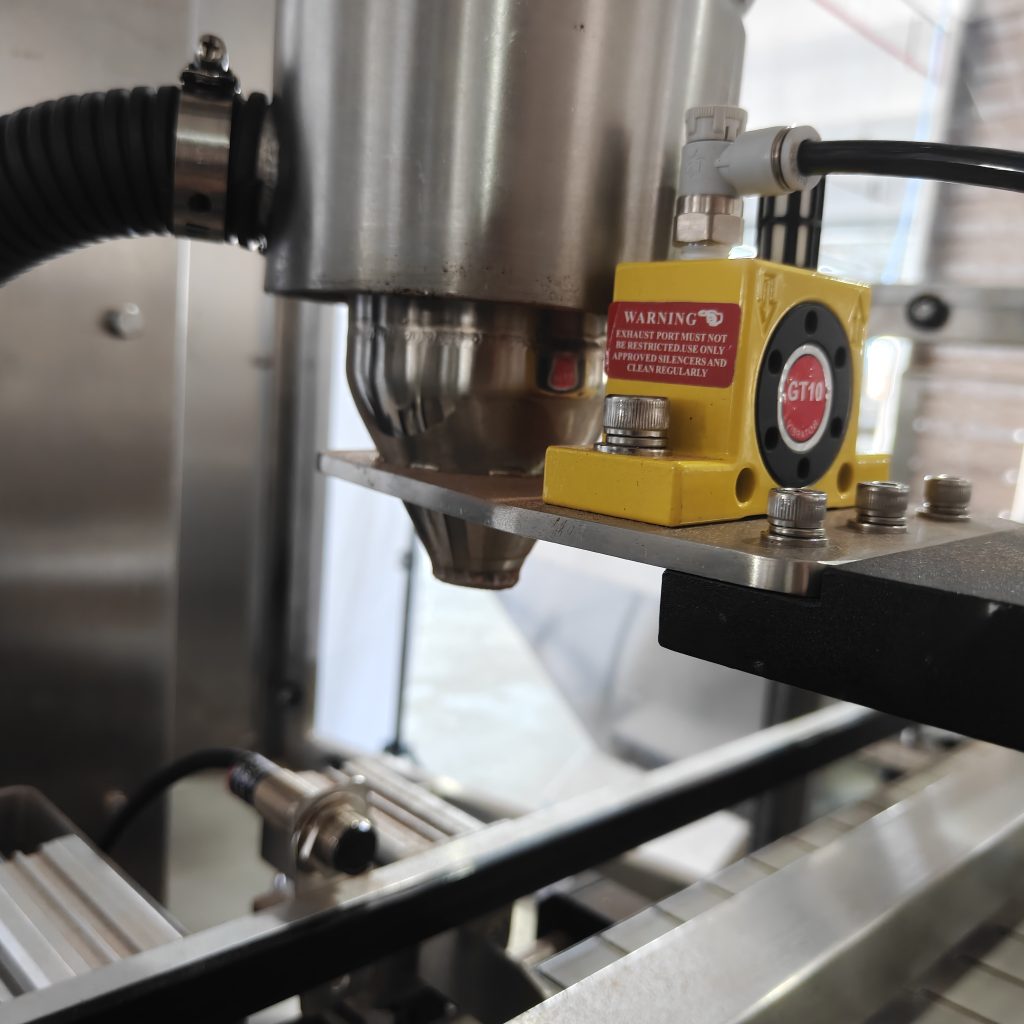

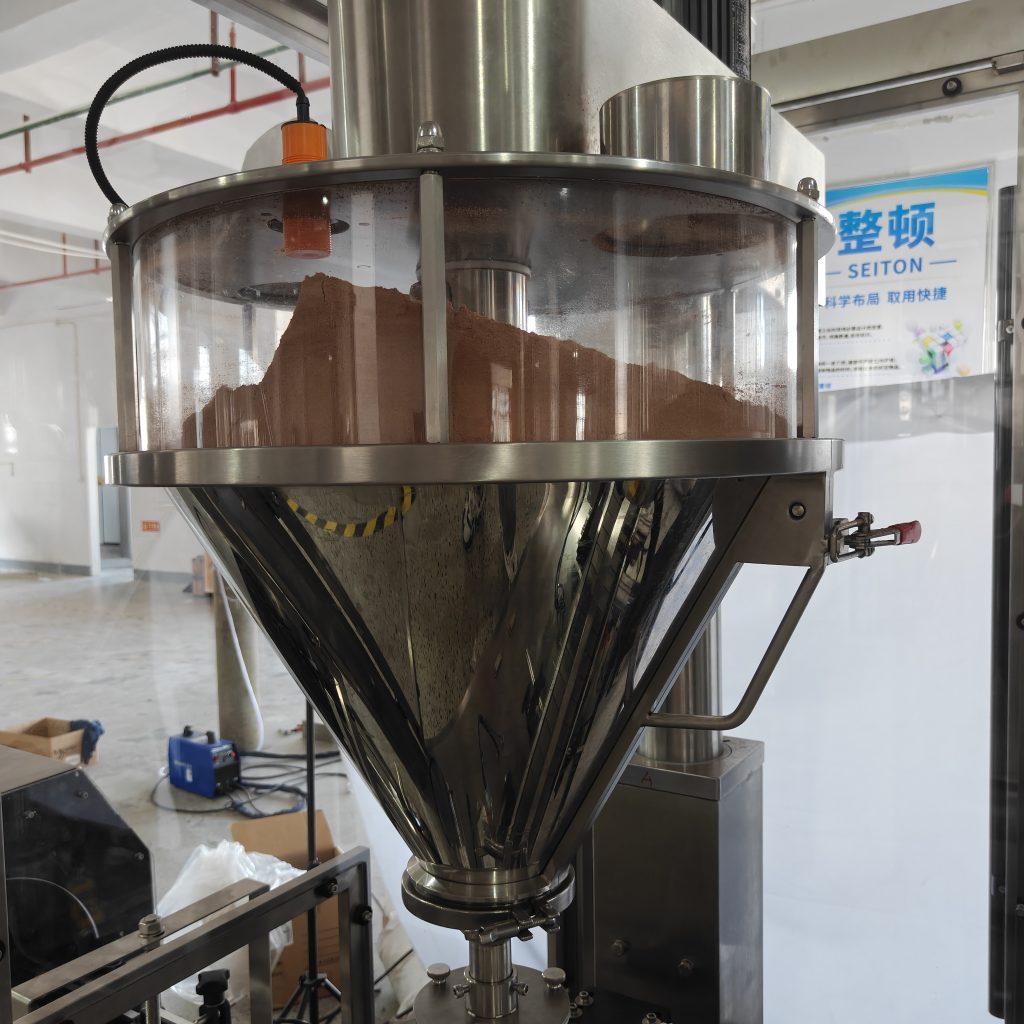

Core Process: Dual-Head Dual-Channel Precision Powder Filling
-

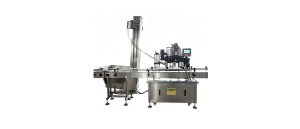

Sealing: Auto-Cap Elevator & 4-Wheel Rotary Capping
-

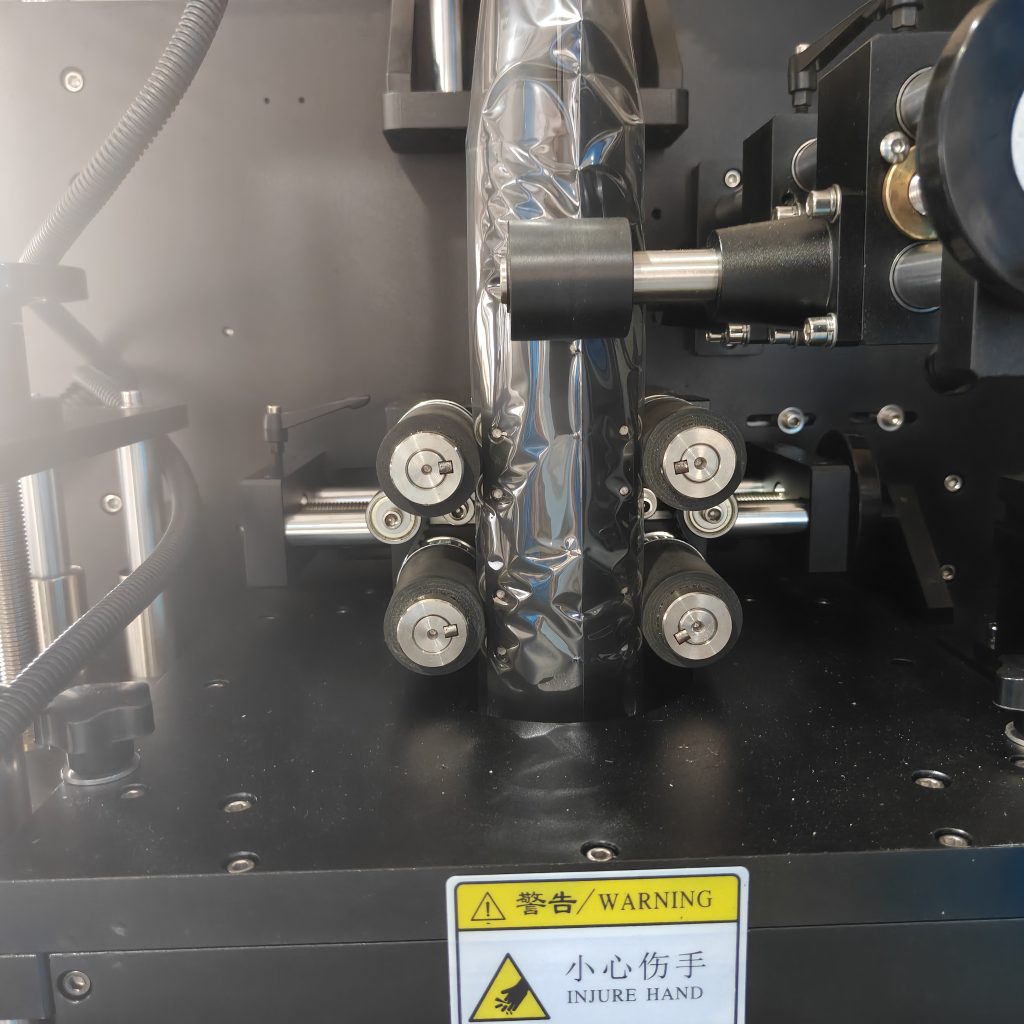

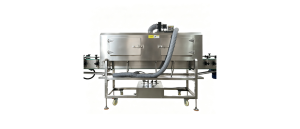

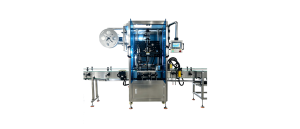

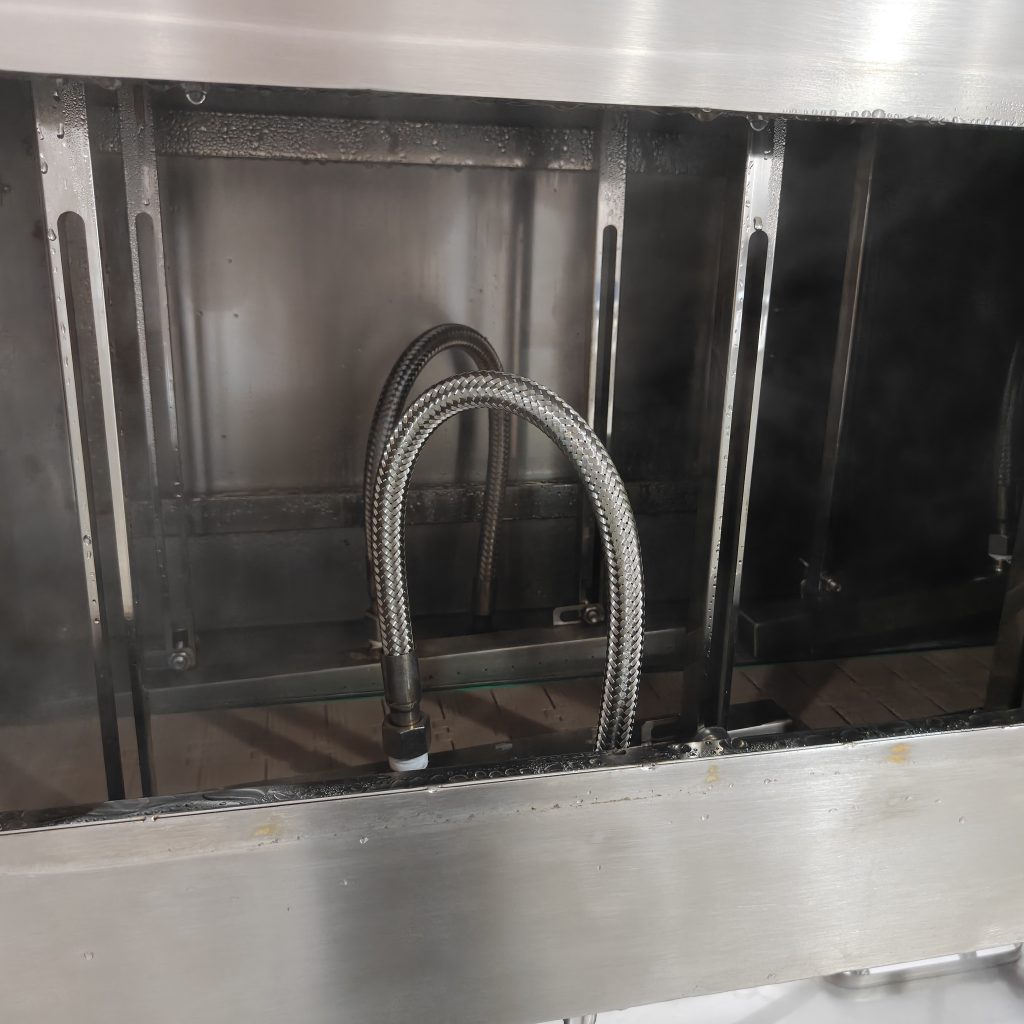

Finishing: Sleeve Labeling, Steam Shrink Tunnel, Air Dryer, and Accumulation Table
| Technical Parameter | Specification |
|---|---|
| Model | LK-QPJ-00 |
| Machine Speed | 40–90 bottles/min |
| Filling Range | 5g–2000g |
| Filling Accuracy | ±1% |
| Bottle / Container Size | Can Diameter: Φ60–Φ135mm, Can Height: 60–260mm |
| Container Type | Can, Bottle, Jar, Pouch |
| Applicable Products | Creatine Monohydrate, Protein Powder, Meal Replacement Powder, Pre-Workout Powder, Nutritional Supplements, etc. |
| Total Power | 4.5 kW |
| Power Supply | 110V / 220V / 380V, 50/60Hz (Customizable) |
| Air Consumption | 0.4–0.6 MPa |
| Operating Environment | Temperature: -5°C to 60°C, Humidity: ≤95% |
| Machine Dimensions | 3000 × 1400 × 1600 mm |
| Machine Weight | 650 kg |
| Certification | CE Certified |
