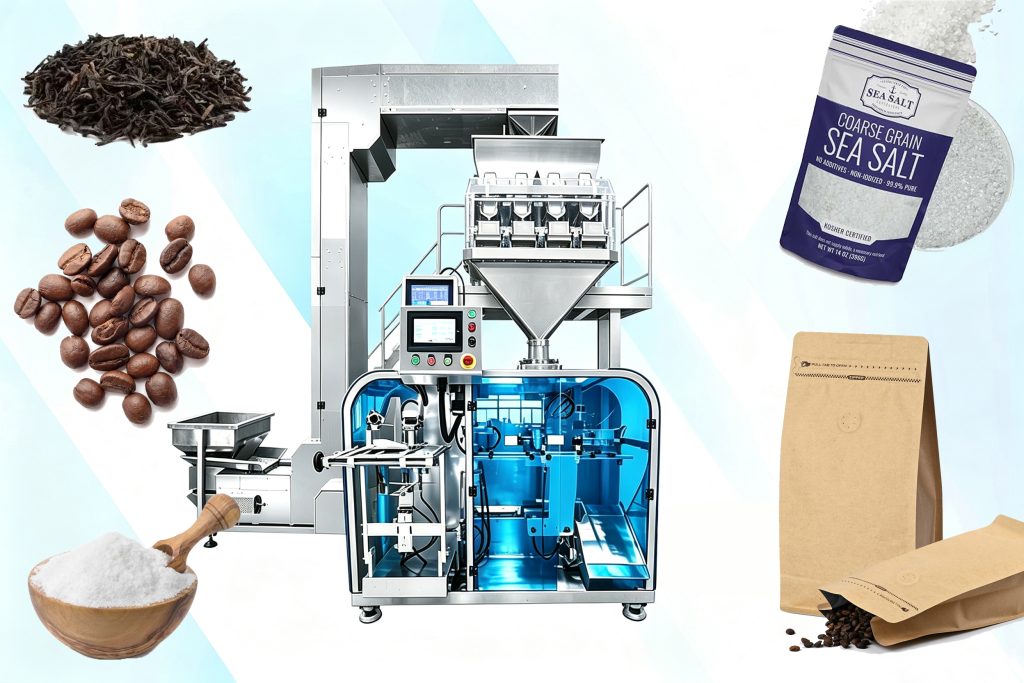

This 4-station linear premade pouch packing machine is designed for prefabricated pouches. It supports multiple bag styles: stand-up zipper bags, gusseted bags and flat pouches.
Compared with traditional 3-station linear packing machines, this 4-station model reserves extra station space for installing coding printer and servo zipper opening mechanism.
The servo zipper opening system automatically unzips stand-up pouches. It completes bag feeding, bag opening, weighing filling, zipper closing, sealing and bag discharge in one continuous workflow. Stable running speed reaches 15–20 bags per minute.
All material contact parts adopt food-grade 304 stainless steel, complying with food factory hygiene standards. It can be matched with multihead weigher for granular materials.
✅ Features
◎The entire machine is constructed of high-precision 304 stainless steel, ensuring rust resistance and durability, and facilitating easy operation and maintenance.
◎Easy to operate,adopt advanced PLC from Germany Siemens , mate with touch screen and electric control system, the man-machine interface is friendly.
◎Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials. 3.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
◎The width of the bags could be adjusted by electrical motor.
◎It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
◎The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.
◎With different feeders changed to pack solid, liquid, thick liquid ,powder and so on. 8.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
✅ Machine Running Video
✅Parameters
| Model | LK4-160 | LK4-210 | LK4-260 | LK4-320 |
| Bag Length | L:110-230mm | L:110-320mm | L:160-380mm | L:100-400mm |
| Bag Width | W:80-160mm | W:100-210mm | W:140-260mm | W:100-320mm |
| Suitable Bag Material | OPP,CPP,PA/PE,PP/CPP,PET/PE,Laminated | |||
| Suitable Bag Style | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag,etc. | |||
| Air supply | 0.4-0.6 MPa | |||
| Packing speed | 10-25 bags/min (Depend on materials and weight) | |||
| Power | AC220V or AC 380V 2KW-6KW | |||
| Machine Size | Customized | |||
✅Wide Product Application
✅ Coffee beans, roasted coffee
✅ Loose leaf tea, herbal tea
✅ Coarse sea salt, granulated sugar
✅ Nuts, dried fruits, snacks
✅ Grain, pet food and other granular food
✅ FAQ
- What pouch types can this 4-station linear packing machine handle?
It works with multiple premade pouch styles: stand-up zipper bags, gusseted bags and flat pouches. One machine adapts to different bag formats.
- What is the difference between 4-station linear and 3-station linear packing machine?
The 4-station linear layout has extra working station space. It can be equipped with coding printer and servo zipper opening function, which cannot be easily fitted on standard 3-station linear models.
- What is the production speed of this linear premade bag packing machine?
The working speed is 15 to 20 bags per minute, subject to bag dimension and product characteristics.
- How does the servo zipper opening system function?
The servo-driven mechanism precisely opens the zipper of stand-up pouches automatically. No manual intervention, greatly boosting production efficiency.
- What products can this linear premade pouch machine pack?
It is suitable for granular products: coffee beans, leaf tea, sea salt, nuts, dried fruits, grains and pet food. It can pair with multihead weigher for accurate weighing.
- Can I install a date coding printer on this 4-station linear machine?
Yes, the 4-station linear structure reserves mounting position for coding printer to print batch number and production date directly on pouches.
- Are the machine contact parts food-safe?
All parts touching materials are 304 food-grade stainless steel, fully meeting food processing hygiene requirements.
- What after-sales service do you offer?
We provide 1-year machine warranty, lifetime online technical support, video guidance for installation, commissioning and troubleshooting for overseas customers.
