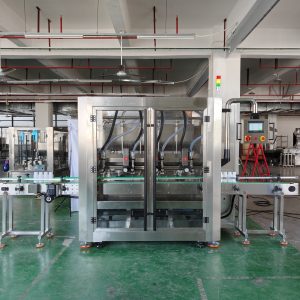

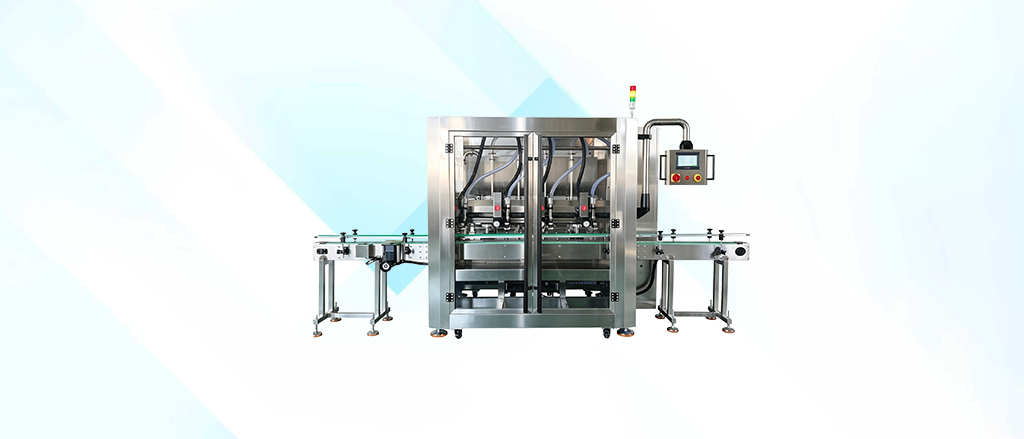

4-Head Mobile Tracking Filling Machine
4-Head Mobile Tracking Filling Machine
4-Head Mobile Tracking Filling Machine
4-Head Mobile Tracking Filling Machine
4-Head Mobile Tracking Filling Machine
4-Head Mobile Tracking Filling Machine
4-Head Mobile Tracking Filling Machine

As a factory that has independently designed and produced packaging equipment since 2010, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging&filling requirements and we will provide you with the most suitable solution.

Whatsapp/Wechat/Phone: +86 13612606619

E-mail: sales@lakerpack.com

Contact Us
Common Output

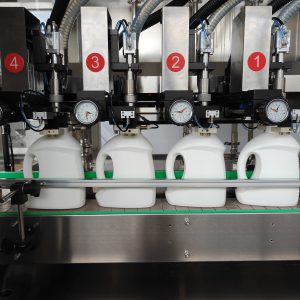

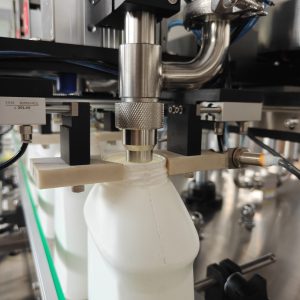

  • 🔄 High-Speed Mobile Tracking Technology: Engineered with a synchronized 4-head mobile tracking system where nozzles move with the containers, delivering an exceptional high-speed output of 40-120 bottles/min while eliminating foam and spillage.

  • 📦 Massive Customizable Dosing Range: Offers a highly flexible, customizable filling envelope from 100ml up to 5000ml, making it the ultimate turn-key choice for both small consumer bottles and large industrial jugs.

  • 🧩 Multi-Shape Container Versatility: Easily adapts to modern packaging varieties, handling round, square, and flat bottles seamlessly without the need for frequent, tedious changeover parts.

  • 🧴 Broad Liquid & Detergent Compatibility: Perfect for high-volume dosing of daily chemical and household products including laundry detergent, fabric softener, dishwashing liquid, shampoos, disinfectants, and edible oils.

  • 🛡️ Rugged Industrial Framework: Featuring a 500kg heavy-duty sanitary frame, power-optimized 2.5KW system, and CE Certification with global voltage tolerance (110V/220V/380V) for tough factory environments.

Technical Parameter Specification
Model LK-GC-00
Machine Speed 40-120bottles/min
Filling Range 100-5000ml (Customizable)

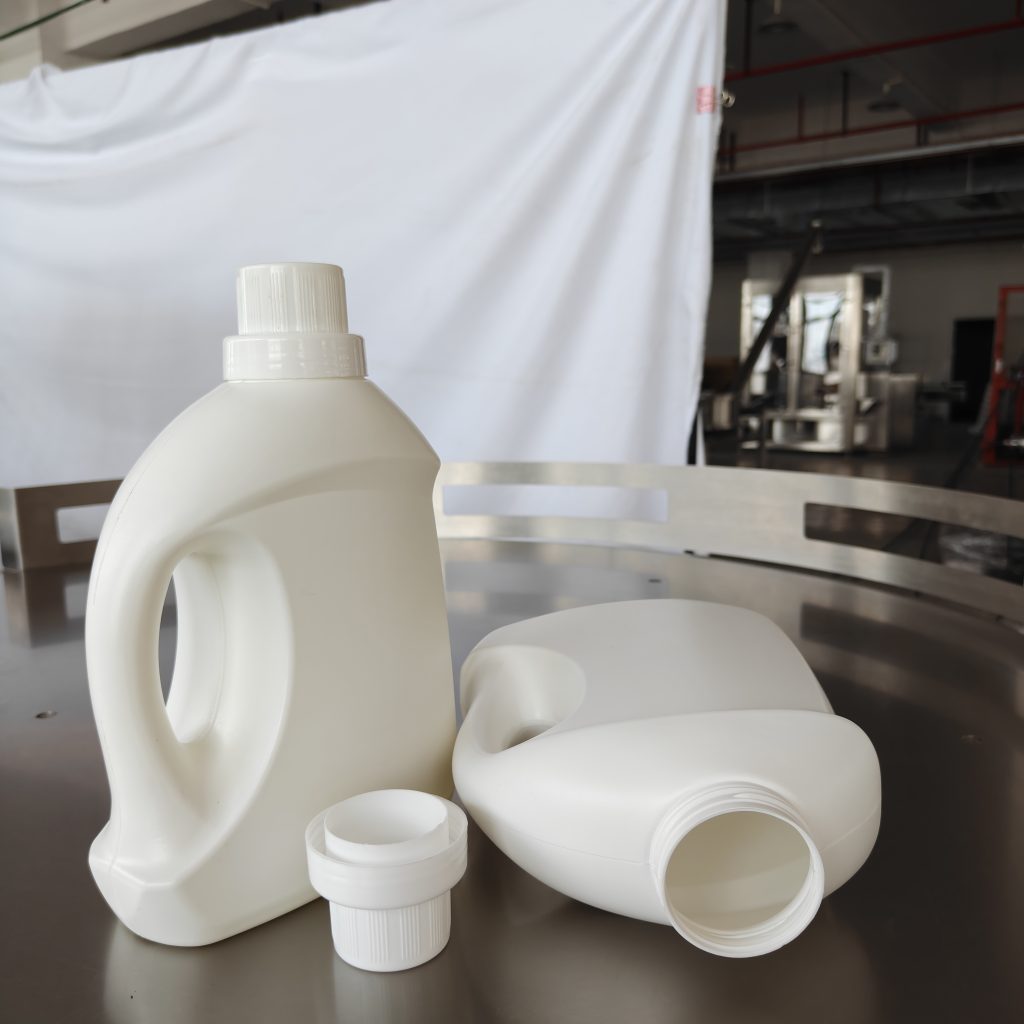

Pouch / Container Type bottle (round, square, flat)
Power Supply 110V/220V/380V, 50Hz
Total Power 2.5KW
Air Consumption 0.6-0.8MPa
Machine Weight 500kg
Machine Dimensions L4000×W1300×H2010mm (Customizable)
Operating Environment Temperature -5-60°C, Humidity ≤95%
Applicable Products Laundry detergent, fabric softener, dishwashing liquid, hand soap, shampoo, shower gel, disinfectant, cleaning liquid, edible oil, beverage
Certification CE
