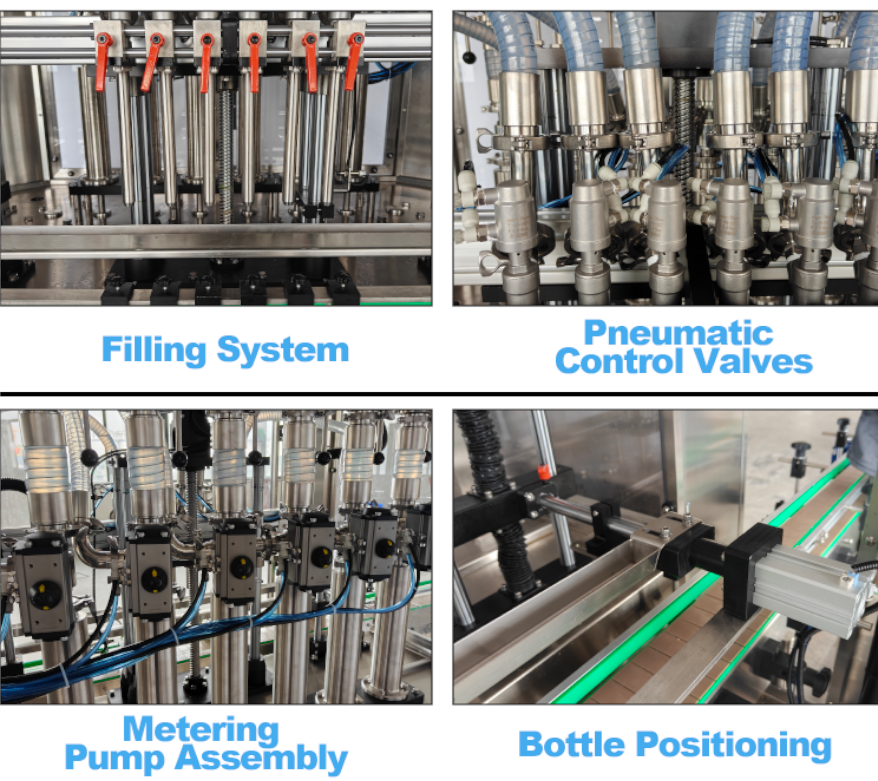

🎯 High-Viscosity Piston Dosing: Driven by a heavy-duty volumetric piston system, perfectly engineered to smoothly dispense thick, cohesive condiments like salad dressing, mayonnaise, ketchup, and peanut butter without clogging.
-

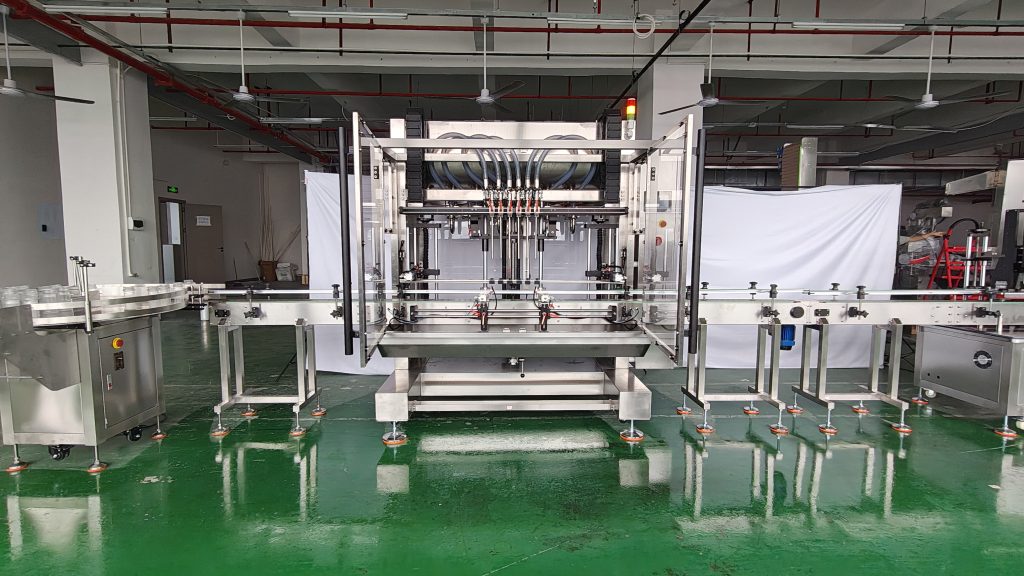

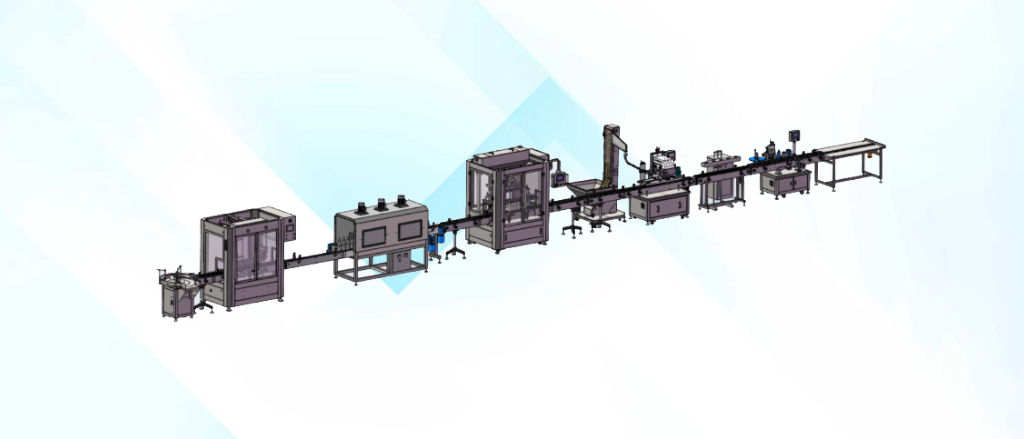

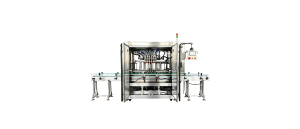

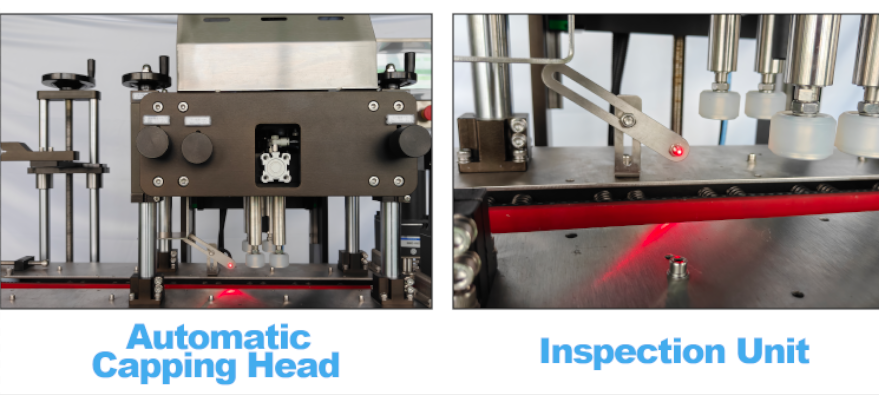

🚀 Complete Packaging Automation: A fully integrated turn-key solution combining a synchronized 6-head filling unit, high-efficiency aluminum foil sealing, and reliable screw capping to achieve a stable output of 40-60 bottles/min.
-
🍾 Broad Round Container Flexibility: Highly compatible with round bottles made of glass, plastic, ceramic, or metal, handling customizable filling ranges from 50ml to 1000ml to support varying SKU sizes.
-
🏭 Rugged & High-Power Industrial Line: Built for demanding 24/7 commercial plants with a massive 3500kg total line weight, driven by an optimized 20.5KW power architecture to ensure seamless long-term stability.
-
🛡️ Sanitary Build & CE Compliance: Constructed using top-tier food-grade stainless steel for effortless sanitation. Fully CE Certified with flexible global voltage support (110V/220V/380V)
| Technical Parameter | Specification |
|---|---|
| Model | LK-LZ-00 |
| Machine Speed | 40-60 bottles/min |
| Filling Range | 50-1000ml (Customizable) |

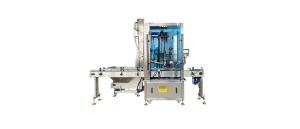

| Sealing Method | Aluminum foil sealing + screw cap |
| Pouch / Container Type | Round bottle (glass, plastic, ceramic, metal) |
| Power Supply | 110V/220V/380V, 50Hz |
| Total Power | 20.5KW |
| Air Consumption | 0.11-0.23m³/min |
| Machine Weight | 3500kg (total line) |

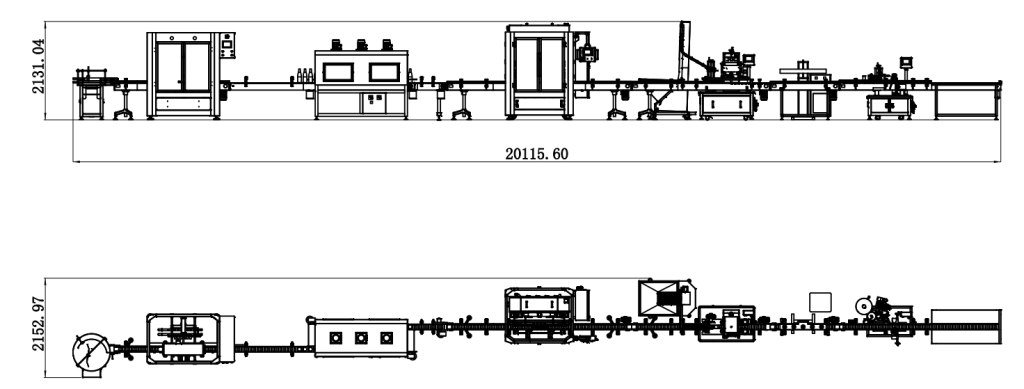

| Machine Dimensions | L20116×W2153×H2132mm |
| Operating Environment | Temperature -5-60°C, Humidity ≤95% |
| Applicable Products | Salad dressing, mayonnaise, ketchup, chili sauce, peanut butter, jam, honey, cooking oil, viscous sauces and condiments |
| Certification | CE |
