Feature
1.Easy to operate,adopt advanced PLC from Germany Siemens , mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4.The width of the bags could be adjusted by electrical motor.
4.The width of the bags could be adjusted by electrical motor.
5.It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.
7.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
8.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Machine Running Video
Specifications
| Machine Model | LK1-300 | LK1-430 | LK1-600 |
| Work Stations | 1 | 1 | 1 |
| Pouch Size-Length(mm) | 100-300 | 100-430 | 380-600 |
| Pouch Size-Width(mm) | 80-300 | 80-300 | 300-500 |
| Reference Filling Weight Range | 5g-1500g | 5g-2500g | 1kg-10kg |
| Power Requirement | AC220V 50/60HZ | AC220V 50/60HZ | AC220V 50/60HZ |
| Speed | 5-15 bags/min | ||
| Suitable Bag Style: | Three-side Seal Bag,Stand up pouch,Gusset Bag,Zipper Bag, Flat Bottom Pouch,etc |
||
Application

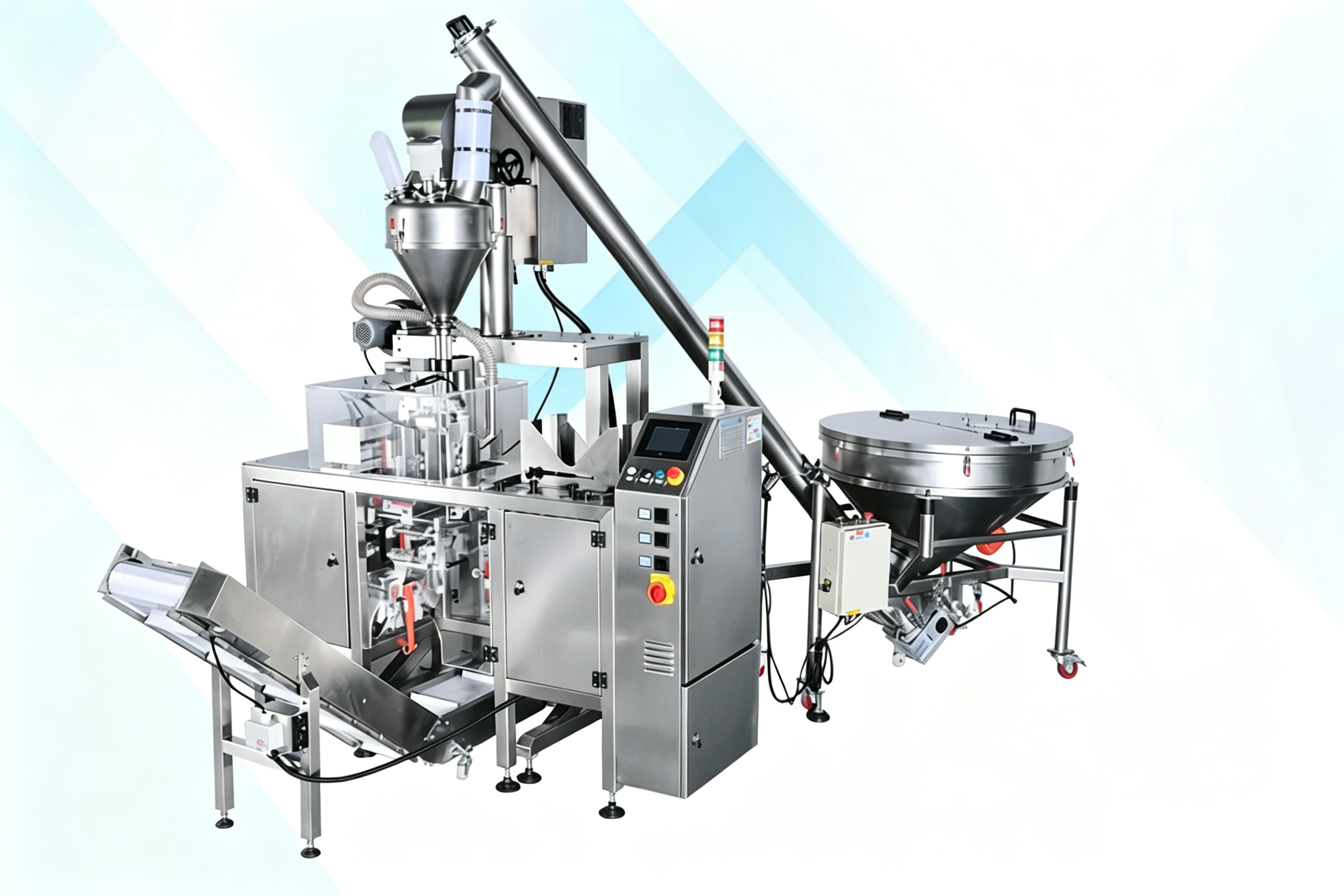

Full-automatic powder bagging unit consists of powder quantitative packaging machine, powder elevator, vacuum feeder, special vacuum cleaner。
Suitable for automatic feeding, automatic bag picking, marking, bag opening, quantitative, dust removal, filling, heat sealing, finished product output and other processes of automatic line packaging of seasonings, milk powder, meal replacement powder, chemical powder, milk tea powder, solid beverage, glucose, additives and other powder materials.
