As a factory that has independently designed and produced packaging equipment since 2010, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging&filling requirements and we will provide you with the most suitable solution.

Whatsapp/Wechat/Phone: +86 13612606619

E-mail: sales@lakerpack.com

Contact Us
Common Output

Feature

◎ New design with perfect fashion, more reasonable structure, more advanced technology
◎Chinese or English display (Language can be set according to customer requirements).
◎Four-side sealing technology for structural integrity and premium visual presentation.

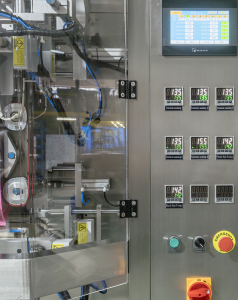

◎Imported PLC control system, colorful touch screen, can clearly shows working state and operation indicator,easy to operate,intuitionistic and efficient.
◎Accurate positioning with imported servo film transporting system and color mark sensor, superexcellent capability for complete machine, perfect packaging.
◎With auto warning protection function to minimize loss.
◎With double transporting devices.gusseting devices and retainer devices, function more perfect.
◎Various kinds of bag, it could provide the hang hole bag, link bag, etc.Automatic correct function, save time, labor, and film, the operation more intelligent. Adopt external film feeding mechanism. Film setting be more easy and quick.

Machine Running Video:

Application

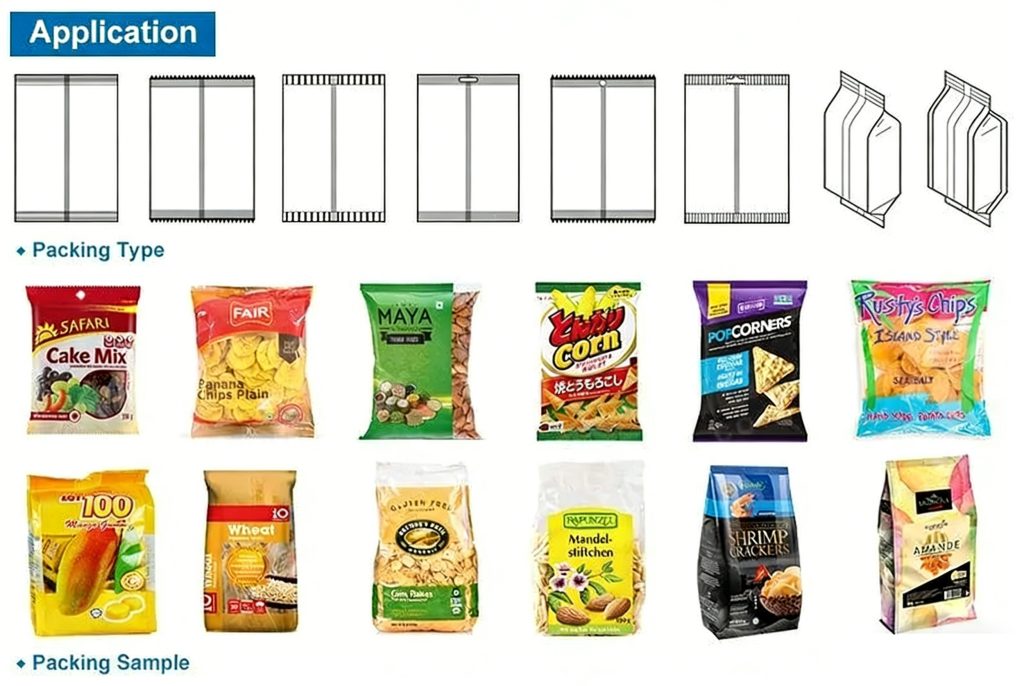

◎ Applicable Bag Type: pillow bag, gusset bag, seal type bag, triangle bag, four-side seal bag/quadro bag  etc.
◎ Applicable Film Material: a variety of laminated films, single layer PE film. Film thickness range 0.03~0.15mm.
◎ Applicable Packing Materials: a variety of snack food,frozen food, detergent powder, pet food, coffee, oatmeal, sugar, salt, puffed food, rice, herbal,tea, small hardware, etc.

Model LKB-420 LKB-520 LKB-620
Film Width 150-420mm 250-520mm 260-620mm
Film Thickness 0.04-0.15mm 0.04-0.15mm 0.04-0.15mm
Bag Length 80-300mm 60-400mm 65-500mm
Front Bag Width 68-145mm 65-175mm 80-225mm
Side Bag Width 45-80mm 45-110mm 45-140mm
Packaging Rate 8-25 bags/min 8-25 bags/min 8-20 bags/min
Measureing Range 1000ml 1500ml 3000ml
Film Roll Diameter Max.320mm Max.320mm Max.320mm
Pakaging Rate 5-60bag/min 5-60bag/min 5-35bag/min
Measurement Range 150-1500ml 15-2000ml 150-3000ml
Power Supply 220V 50Hz 2.8KW 220V 50Hz 3.2KW 220V 50Hz 3.2KW
Machine Size 1390*1155*800mm 1492*1255*2184mm 1590*1500*2408mm
Machien Weight About 600kg About 700kg About 800kg
