✅Feature
- Inclined slanted frame design: Reduce material drop impact, prevent frozen shrimp & vegetables from crushing

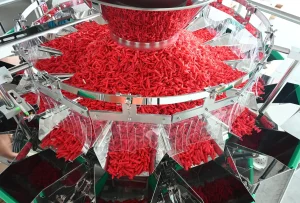

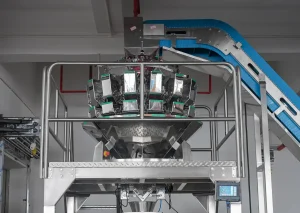

- Multihead combination weigher for high precision weighing of irregular frozen food

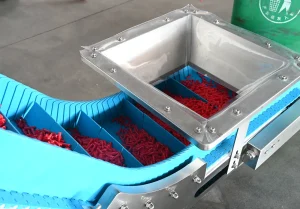

- Anti-slip cleat inclined belt elevator for slippery frozen products
- Food grade 304 stainless steel, stable operation in cold frozen workshop
- PLC & touch screen control, recipe storage, quick bag size changeover

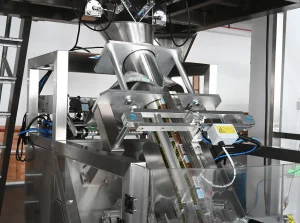

- Automatic bag forming, filling, sealing and cutting
- Easy disassembly for cleaning and maintenance
- Supports large pillow pouch packaging
Machine Running Video:
✅Application
◎ Applicable Bag Type: pillow bag, gusset bag, seal type bag, triangle bag, four-side seal bag/quadro bag etc.
◎ Applicable Film Material: a variety of laminated films, single layer PE film. Film thickness range 0.03~0.15mm.
◎ Applicable Packing Materials: a variety of snack food,frozen food, detergent powder, pet food, coffee, oatmeal, sugar, salt, puffed food, rice, herbal,tea, small hardware, etc.
✅Specification
| Model | LKV-420 | LKV-520 | LKV-620 | LKV-720 | LKV-900 | LKV-1050 | LKV-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 60-450mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 65-300 | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-35bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | Max.620mm | Max.720mm | Max.900mm | Max.1050mm | Max.1200mm |
| Measurement Range | 150-1500ml | 15-2000ml | 150-3000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
| Machine Size | (L)1217X(W)1015X(H)1343 | (L)1488X(W)1080X(H)1490 | (L)1488X(W)1180X(H)1550 | (L)1780X(W)1350X(H)2050 | (L)1780X(W)1350X(H)2050 | (L)2000X(W)1500X(H)2600 | (L)2900X(W)2050X(H)3500mm |

✅FAQ
Q: What is inclined VFFS packaging machine?
A: Inclined VFFS machine adopts slanted frame design, it reduces the drop impact of heavy or fragile products, preventing crushing during packaging, perfect for frozen shrimp and frozen mixed vegetables.
Q: What frozen products can this inclined VFFS pack?
A: It is suitable for frozen shrimp, mixed frozen vegetables, frozen peas, corn, green beans, frozen chicken strips and other frozen granular seafood and vegetables.
Q: What’s the advantage of inclined VFFS vs normal vertical VFFS?
A: The inclined frame shortens the vertical drop distance, lowers impact force, so frozen shrimp and vegetables will not be crushed when falling into bags.
Q: Can this inclined VFFS make large bags?
A: Yes, it can produce large pillow pouches for 1kg, 2kg, 2.5kg frozen vegetable and frozen shrimp packaging.
