High-Speed & Efficient Production: Achieves impressive labeling speeds of 20–200 pcs/min (depending on bottle and label dimensions), significantly increasing production line capacity.
-
Durable SUS304 & Anodized Aluminum Build: Constructed from high-grade SUS304 stainless steel and anodized aluminum for outstanding hygiene, stability, and corrosion resistance.
-
Smart PLC & Optical Sensing Control: User-friendly touchscreen control combined with optical sensors prevents missing, double, or misaligned labels during automatic operation.
-

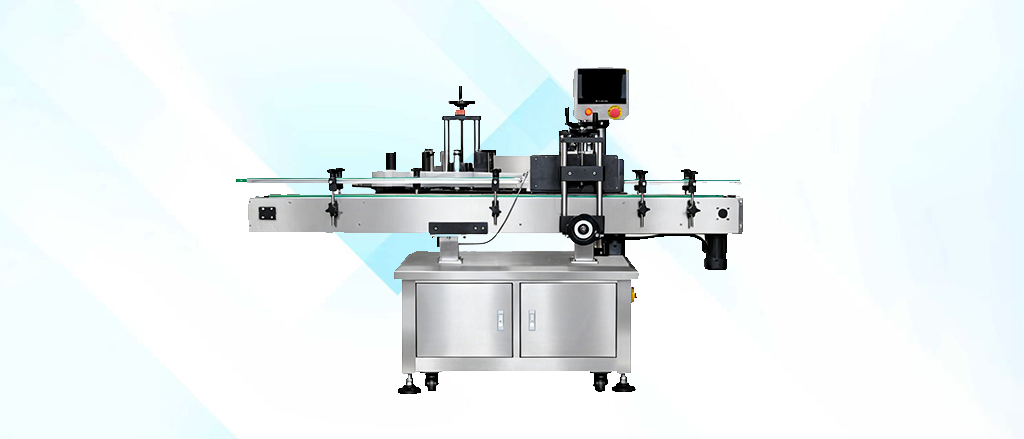

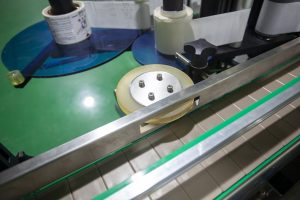

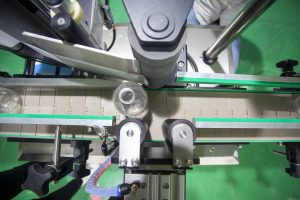

High-Precision Wrap-Around Application: Delivers smooth, bubble-free, and wrinkle-free full or partial wrap labeling with an accurate tolerance within ±1mm.
-
Wide Bottle Range Compatibility: Fits various cylindrical bottles, jars, cans, and vials with diameters ranging from Φ20mm to Φ120mm (customizable for special sizes).
| Technical Parameter | Specification |
|---|---|
| Labeling Speed | 20-200 pcs/min (Depending on bottle & label size) |
| Labeling Accuracy | ±1mm (Excluding bottle and label error) |
| Applicable Bottle Diameter | Φ20mm – Φ120mm (Customizable) |
| Applicable Label Height | 15mm – 150mm |
| Applicable Label Length | 25mm – 300mm |
| Label Roll Inner Diameter | Φ76mm |
| Label Roll Outer Diameter | Max Φ300mm |
| Power Supply | 110V/220V 50/60Hz 1.5KW |
| Machine Material | Full SUS304 Stainless Steel & Anodized Aluminum |
| Machine Dimensions | Approx. 2000 * 1100 * 1300mm |
| Machine Weight | 300kg |
