Ultra High-Speed Performance: Delivers rapid labeling speeds up to 50–200 pcs/min, greatly maximizing throughput for high-demand production lines.
High-Precision Wrap-Around Application: Ensures smooth, bubble-free, and wrinkle-free labeling with an accuracy of \pm 1\text{mm}.
Versatile Bottle Size Compatibility: Easily adapts to a wide range of cylindrical bottles, jars, cans, and vials (Diameter range: \Phi 20\text{mm} – \Phi 100\text{mm}).
Heavy-Duty SUS304 Stainless Steel: Constructed entirely with high-grade SUS304 stainless steel for optimal hygiene, durability, and corrosion resistance.

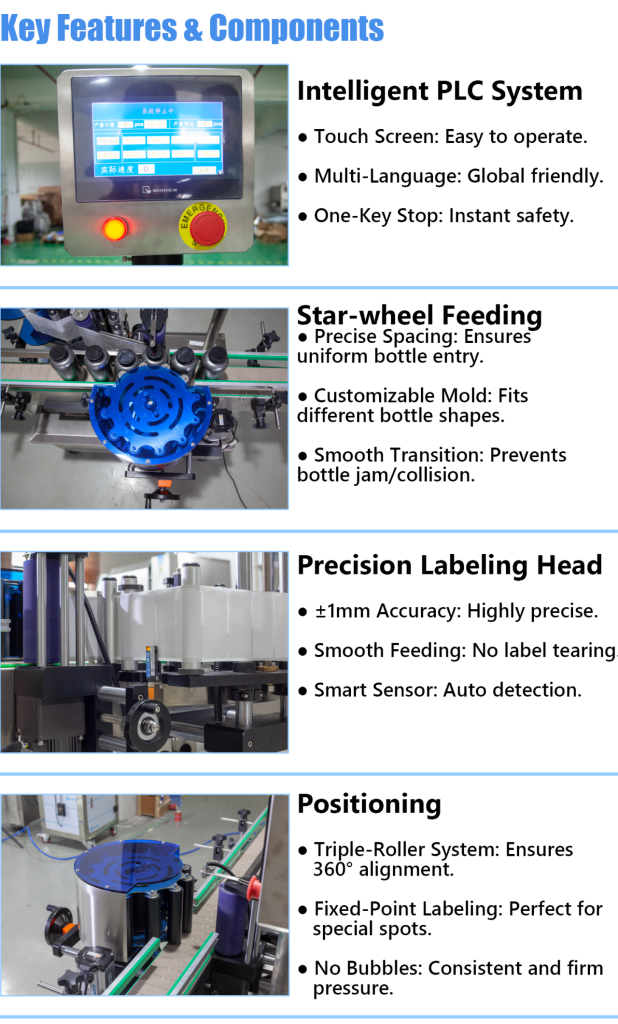

Intelligent PLC & Optical Sensor Control: Equipped with a multi-language touchscreen and advanced optical sensors to prevent missing labels and ensure precise positioning.
| Technical Parameter | Specification |
|---|---|
| Labeling Speed | 50-200 pcs/min (Depending on bottle & label size) |
| Labeling Accuracy | ±1mm (Excluding bottle and label error) |
| Applicable Bottle Diameter | Φ20mm – Φ100mm (Customizable) |
| Applicable Label Height | 15mm – 150mm |
| Applicable Label Length | 25mm – 300mm |
| Power Supply | 110V/220V 50/60Hz |
| Machine Material | Full SUS304 Stainless Steel |
| Machine Weight | 300kg |
