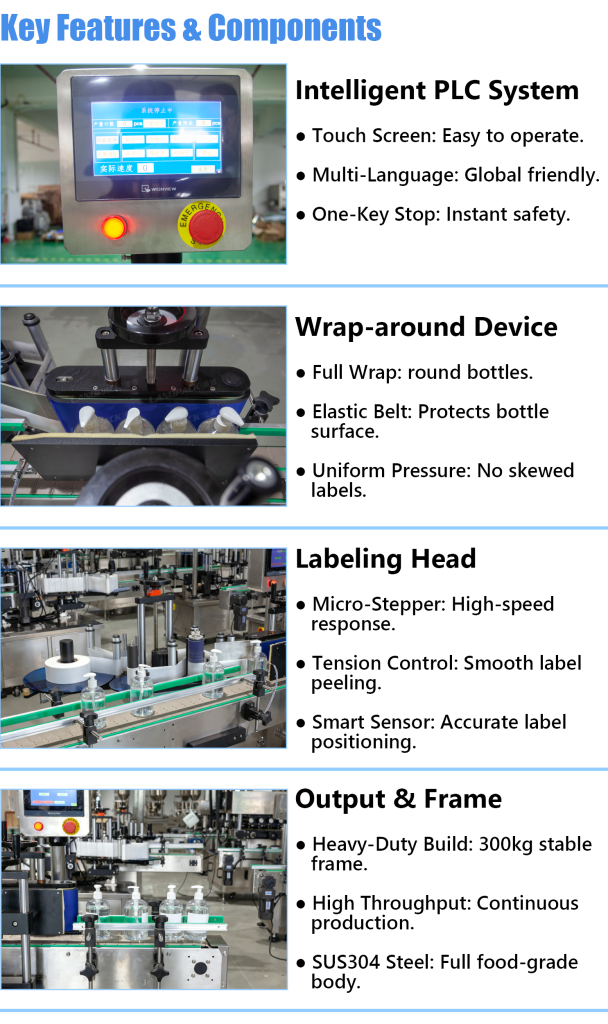

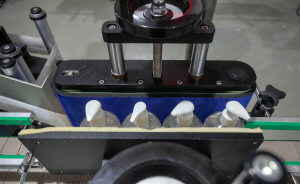

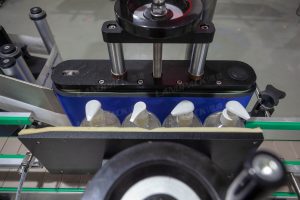

High Precision Wrap-Around Labeling: Features a dynamic wrap belt/roller mechanism delivering $\pm 1\text{mm}$ accuracy with zero bubbles or wrinkles—ideal for full-wrap and partial-wrap labeling.
-
Broad Container Versatility: Easily adjusts to label various cylindrical containers including cosmetic cream jars, juice bottles, sports drinks, and pharmaceutical vials (Diameter: $\Phi 20\text{mm} – \Phi 100\text{mm}$).
-
High Efficiency & Flexible Speed: Reaches speeds of up to 20–150 pcs/min, seamlessly integrating with existing production lines to boost output.
-
Full SUS304 Stainless Steel Build: Premium, heavy-duty stainless steel construction ensures excellent corrosion resistance, hygiene compliance, and long-term operating stability.
-
Smart PLC & Photoelectric Sensor Control: Intuitive touchscreen interface combined with smart optical sensors ensures precise label positioning and stops labeling if no bottle is detected.
| Technical Parameter | Specification |
|---|---|
| Labeling Speed | 20-150 pcs/min (Depending on bottle & label size) |
| Labeling Accuracy | ±1mm (Excluding bottle and label error) |
| Applicable Bottle Diameter | Φ20mm – Φ100mm (Customizable) |
| Applicable Label Height | 15mm – 140mm |
| Applicable Label Length | 25mm – 280mm |
| Power Supply | 110V/220V 50/60Hz |
| Machine Material | Full SUS304 Stainless Steel |
| Machine Weight | 250kg |
