Feature

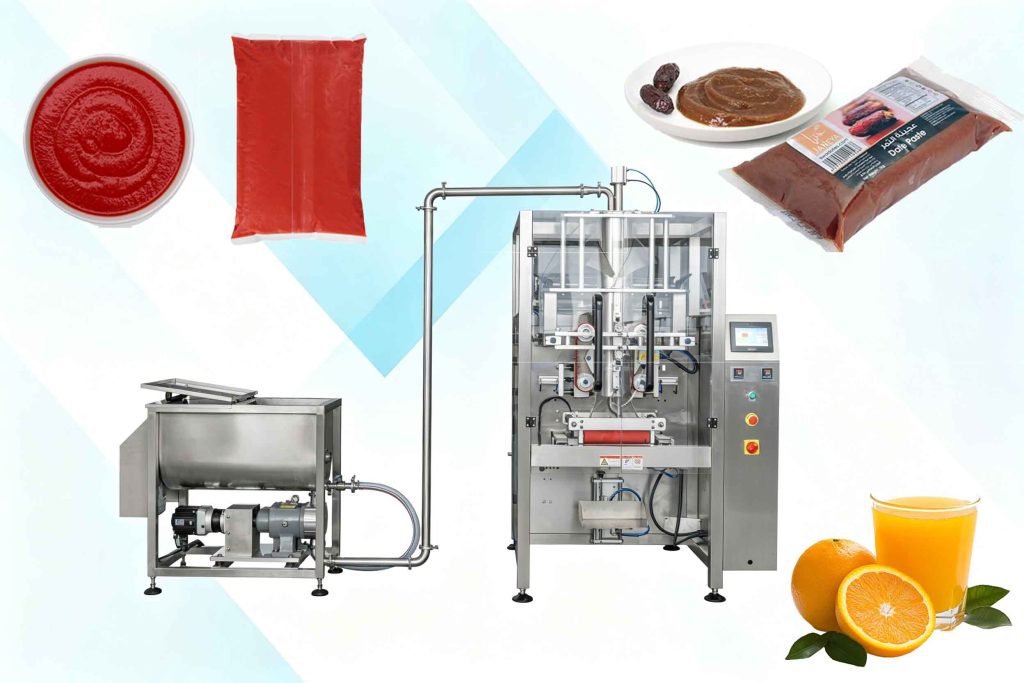

◎This viscous liquid airless pouch packing machines is specialized machines designed to efficiently package viscous liquids, such as sauces, pastes, gels, creams, and similar substances, into airless pouches.
The machine are widely used across various industries for packaging products that require protection from air and external contaminants, as well as extended shelf life.
◎PLC control, man machine interface, easy to operate and maintain.
◎ Equipped with servo motor and optical tracking device to keep accuracy and high speed.
◎ Automatic measuring pump and packing combined design, saving room space and reduce the investment cost.
Machine Running Video:
Application
◎ Applicable Bag Type: pillow bag
◎ Applicable Film Material: a variety of laminated films, single layer PE film. Film thickness range 0.03~0.15mm.
◎ Applicable Packing Materials: liquid objects, such as oli, water, juice, milk, honey, soy sauce, ketchup, tomato sauce, liquid detergent etc.
| Model | LKV-420 | LKV-520 | LKV-620 | LKV-720 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 60-450mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 65-300 | 180-350mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | Max.320mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-35bag/min | 5-55bag/min |
| Film Width | Max.420mm | Max.520mm | Max.620mm | Max.720mm |
| Measurement Range | 150-1500ml | 15-2000ml | 150-3000ml | 4000ml |
| Machine Size | (L)1217X(W)1015X(H)1343 | (L)1488X(W)1080X(H)1490 | (L)1488X(W)1180X(H)1550 | (L)1780X(W)1350X(H)2050 |
