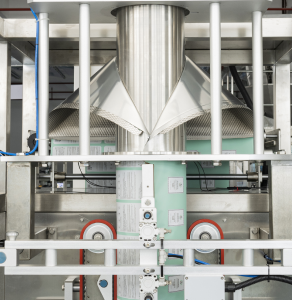

This automatic vertical powder packing machine supports packaging weight ranging from 500g up to 5kg, designed for large pouch powder packaging. Equipped with screw conveyor feeding system and precision auger filler, it realizes continuous feeding, measuring, bag forming, sealing and cutting automatically.
All parts touching powder material are food-grade 304 stainless steel, meeting food hygiene requirements. It handles fine powder with low dust leakage, perfect for large weight bag packaging.
✅Features
◎ New design with perfect fashion, more reasonable structure, more advanced technology
◎Chinese or English display (Language can be set according to customer requirements).
◎Imported PLC control system, colorful touch screen, can clearly shows working state and operation indicator,easy to operate, intuitionistic and efficient.
◎Accurate positioning with imported servo film transporting system and color mark sensor, super excellent capability for complete machine, perfect packaging.
◎With auto warning protection function to minimize loss.
◎With double transporting devices.gusseting devices and retainer devices, function more perfect.
◎Various kinds of bag, it could provide the hang hole bag, link bag, etc.
◎Automatic correct function, save time, labor, and film, the operation more intelligent. Adopt external film feeding mechanism. Film setting be more easy and quick.
✅Machine Running Video
✅Parameters:
◎ Applicable Bag Type: pillow bag, gusset bag, seal type bag, triangle bag.
◎ Applicable Film Material: a variety of laminated films, single layer PE film. Film thickness range 0.03~0.15mm.
◎ Applicable Packing Materials: a variety of powder, like flour, Wheat flour,milk powder, baking powder, Sugar powder coffee powder, cocoa powder, starch powder, Spice powder, curry powder, cereal powder, curry powder, protein powder and seasoning powder and other fine powder products.
| Model | LKV-420 | LKV-520 | LKV-720 | LKV-900 | LKV-1050 | LKV-1200 |
| Film Thickness(mm) | 0.04-0.08 | 0.04-0.12 | 0.04-0.12 | 0.04-0.12 | 0.04-0.12 | 0.04-0.12 |
| Bag Length (mm) | 80-300 | 80-350 | 100-500 | 100-600 | 100-800 | 100-1000 |
| Bag Width (mm) | 60-200 | 100-250 | 180-350 | 260-430 | 290-505 | 290-580 |
| Film Roll Diameter (mm) |
Max.320 | Max.320 | Max.320 | 400 | 400 | 400 |
| Packaging Rate (bags/min) |
5-60 | 5-60 | 5-55 | 5-20 | 5-20 | 5-20 |
| Film Width (mm) | Max.420 | Max.520 | Max.720 | Max.900 | Max.900 | Max.1200 |
| Measurement Range |
150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
FAQ
- What weight range can this vertical powder packing machine fill?
This machine supports adjustable filling weight from 200g to 5kg, ideal for small sachets and large 1kg, 2kg, 5kg powder bags.
- What powder products can this auger filler machine pack?
It works well for wheat flour, icing sugar, milk powder, spice powder, cereal powder and other fine free-flowing or slightly sticky food powders.
- Can this machine avoid powder dust during filling?

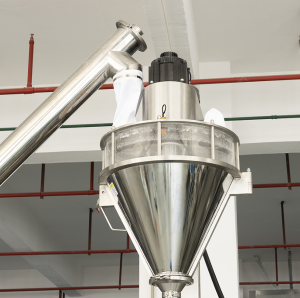

Yes. The auger filler adopts sealed filling structure to reduce dust leakage, keeps workshop clean for food production.
- Is the machine suitable for 5kg flour bag packaging?

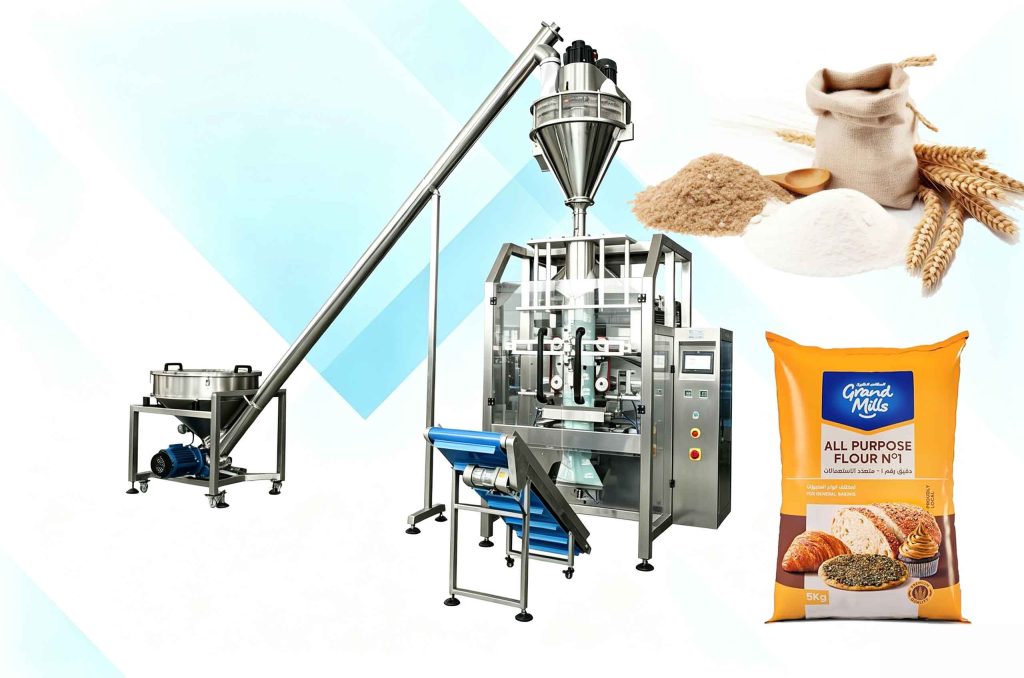

Absolutely. It is specially optimized for large pouch up to 5kg, widely used by flour mills for 5kg all-purpose flour packaging.
- Can I change bag size and filling weight quickly?
Filling weight can be modified directly on the touch screen. Changing forming mould allows switching different bag dimensions.
- What after-sales service do you offer for this powder packing machine?
1-year machine warranty, lifetime online technical support. We provide video guidance for installation, commissioning and troubleshooting for overseas factories.
- Can we customize voltage for our local factory power supply?
Yes, we support 220V / 380V, 50Hz or 60Hz to match your country’s electricity standard.
- Does this machine come with the screw conveyor feeding system?

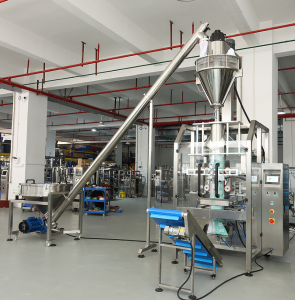

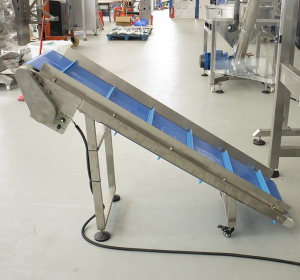

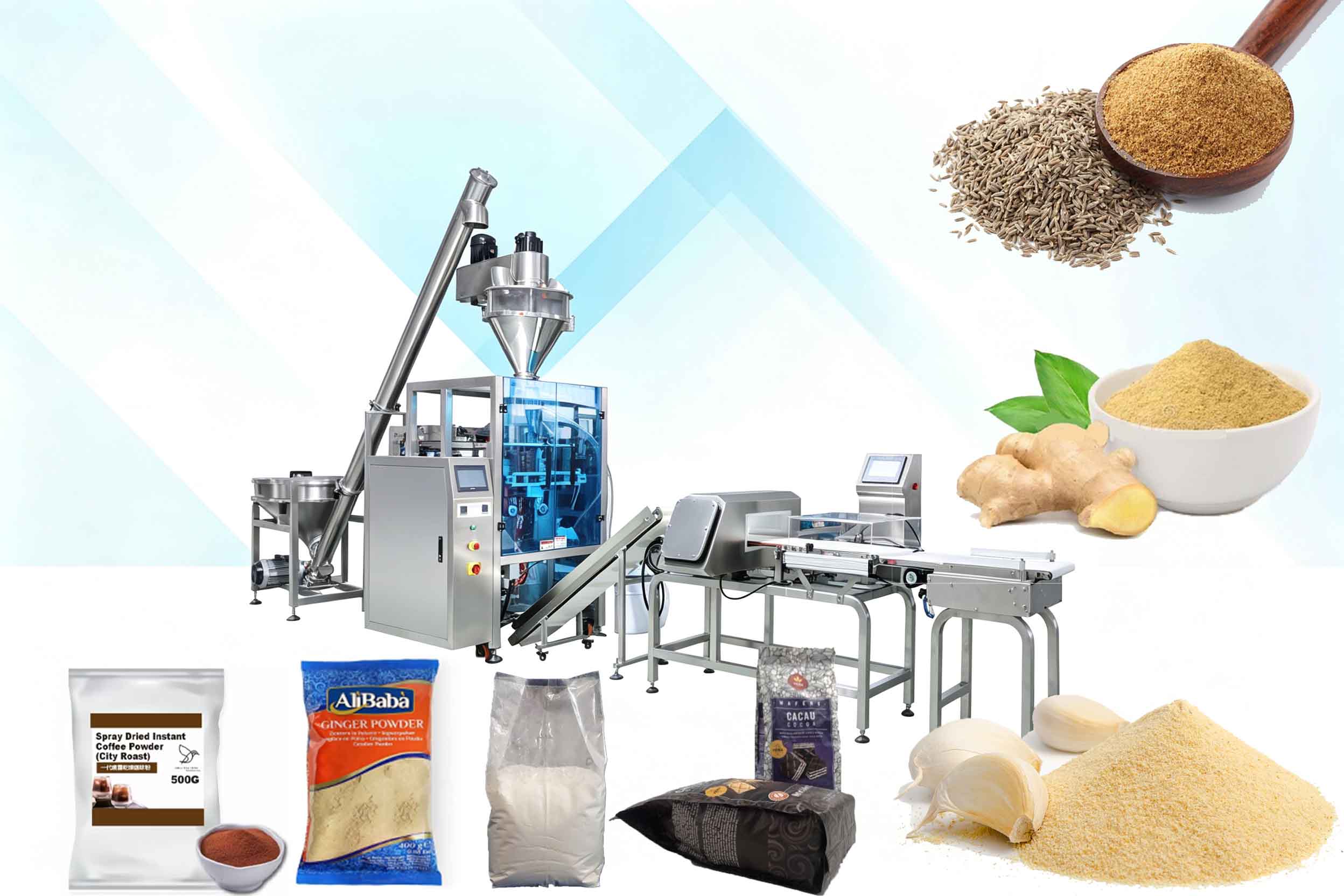

The complete set includes screw elevator (screw conveyor), auger filler, main VFFS machine and finished product conveyor, as shown in the picture.
