Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine
Coffee Deterget Powder Salt Roll Film Packaging Machine

As a factory that has independently designed and produced packaging equipment since 2010, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging&filling requirements and we will provide you with the most suitable solution.

Whatsapp/Wechat/Phone: +86 13612606619

E-mail: sales@lakerpack.com

Contact Us
Common Output

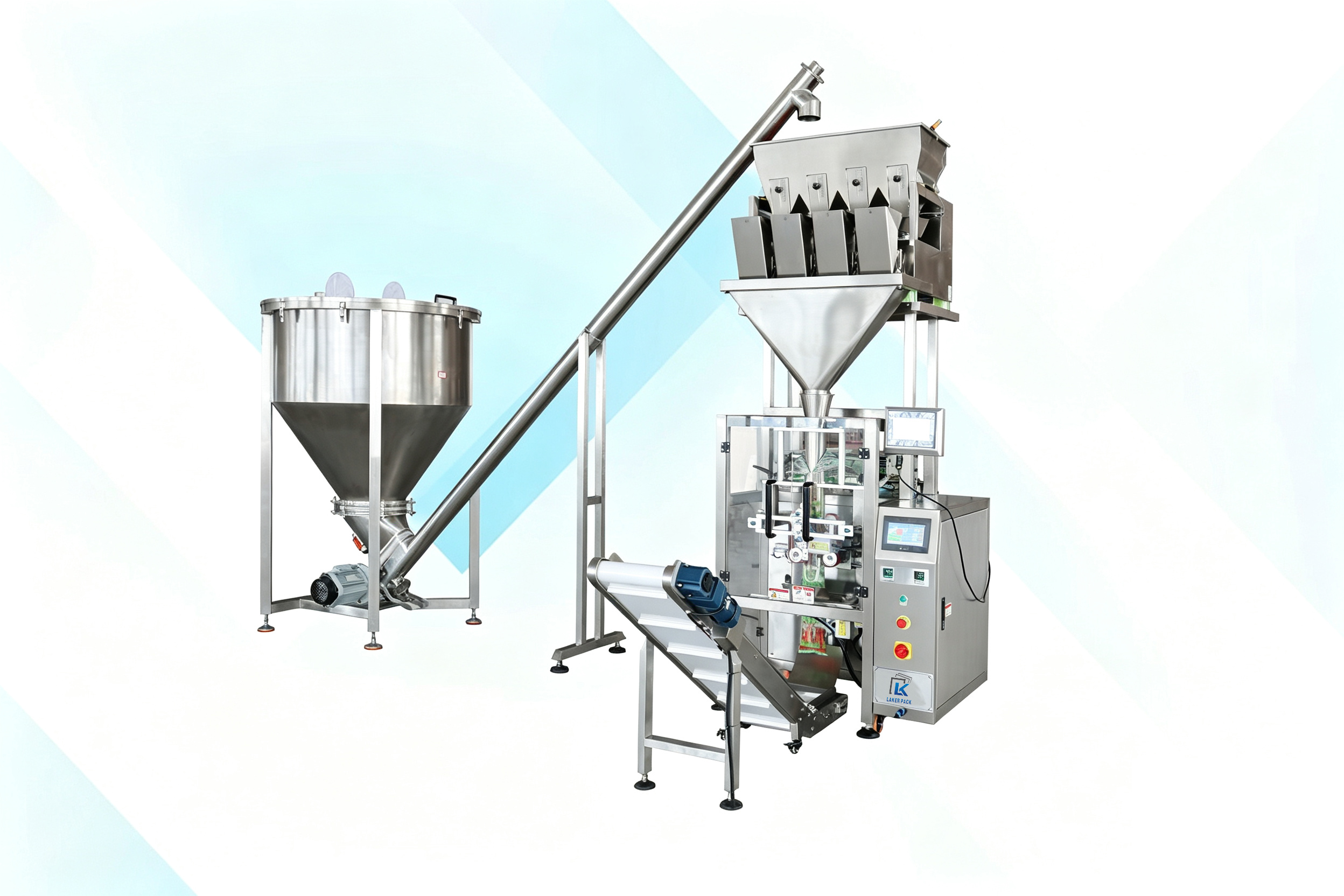

Our vertical granule packing machine is a complete VFFS (Vertical Form Fill Seal) packaging system for free-flowing granular food products, such as granulated sugar, brown sugar, corn grits, rice, grains and other granular materials.

Equipped with a 4-head linear weigher, screw conveyor feeding system and large stainless steel storage tank, this automatic granule bagging machine completes bag making, precise weighing, filling, sealing, cutting and finished product conveying in one continuous workflow.

✅Feature

◎ New design with perfect fashion, more reasonable structure, more advanced technology
◎Chinese or English display (Language can be set according to customer requirements).
◎Imported PLC control system, colorful touch screen, can clearly shows working state and operation indicator,easy to operate,intuitionistic and efficient.
◎Accurate positioning with imported servo film transporting system and color mark sensor, superexcellent capability for complete machine, perfect packaging.
◎With auto warning protection function to minimize loss.
◎With double transporting devices.gusseting devices and retainer devices, function more perfect.
◎Various kinds of bag, it could provide the hang hole bag, link bag, etc.
◎Automatic correct function, save time, labor, and film, the operation more intelligent. Adopt external film feeding mechanism. Film setting be more easy and quick.
◎Food-grade 304 stainless steel for all material contact parts, compliant with food hygiene standards.
◎4-head linear weigher for stable and accurate weighing of grains & sugar granules.
◎Low maintenance, stable running for long-time continuous production

✅Machine Running Video:

Heat‐sealing and microscopic evaluation of paper‐based coated materials using various seal bar geometries in vertical form fill seal machine - Merabtene - 2023 - Packaging Technology and Science - Wiley Online Library

✅Macine Parameters:

◎ Applicable Bag Type: pillow bag, gusset bag, seal type bag, triangle bag.
◎ Applicable Film Material: a variety of laminated films, single layer PE film. Film thickness range 0.03~0.15mm.
◎ Applicable Packing Materials: a variety of powder, like flour, milk powder, baking powder, coffee powder, cocoa powder, starch powder, protein powder and seasoning powder and other fine powder products.

Model LKV-420 LKV-520 LKV-620 LKV-720 LKV-900 LKV-1050 LKV-1200
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm
Bag Length 80-300mm 80-350mm 60-450mm 100-500mm 100-600mm 100-800mm 100-1000mm
Bag Width 60-200mm 100-250mm 65-300 180-350mm 260-430mm 290-505mm 290-580mm
Film Roll Diameter Max.320mm Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm
Pakaging Rate 5-60bag/min 5-60bag/min 5-35bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min
Film Width Max.420mm Max.520mm Max.620mm Max.720mm Max.900mm Max.1050mm Max.1200mm
Measurement Range 150-1500ml 15-2000ml 150-3000ml 4000ml 1-25L 1-25L 1.5L-45L
Machine Size (L)1217X(W)1015X(H)1343 (L)1488X(W)1080X(H)1490 (L)1488X(W)1180X(H)1550 (L)1780X(W)1350X(H)2050 (L)1780X(W)1350X(H)2050 (L)2000X(W)1500X(H)2600 (L)2900X(W)2050X(H)3500mm

✅FAQ

Q1: What production capacity can this vertical granule packing machine reach?

A: The output depends on target bag weight. For corn grits and granulated sugar, it can reach 20–55 bags per minute. We can optimize the running speed according to your required bag size and weight.

Q2: Can this VFFS granule packing machine handle different bag weights in one line?

A: Yes. The 4-head linear weigher supports flexible weight range adjustment. You can switch between different target weights via the touchscreen without replacing major machine parts.

Q3: Does your machine support multiple packaging film types for grain & sugar?

A: Absolutely. It works with PE film, BOPP composite film, laminated film and heat-sealable food packaging rolls. Our team will check your film specs before delivery.

Q4: What after-sales service do you provide for this granule packaging line?

A: We provide 12-month warranty, lifetime technical support. We offer remote online commissioning and video training for your operators. Overseas on-site service is available on request.

Q5: Is it easy to clean the machine when switching between sugar and corn grits?

A: Yes. The material contact parts are quick detachable 304 stainless steel. You can disassemble and clean them rapidly to avoid cross-contamination between different grain products.

Q6: Can you customize the machine height or discharge conveyor for my factory workshop?

A: Customization is available. We can adjust the machine height, conveyor length and hopper size to fit your workshop layout and production line connection requirements.

Q7: What certifications does this vertical packing machine have for food export packaging?

A: Our granule packing machine meets food-grade requirements and comes with CE certification, which fits EU, Southeast Asia and many global food factory standards.

Q8: What is the lead time if I place an order for this sugar & corn grits packing line?

A: Standard machine lead time is 25–35 working days. We will confirm the exact schedule after confirming your machine configuration and customized demands.

Q9: Can this machine work continuously for 24-hour food factory production?

A: Yes. This VFFS machine is built for heavy-duty continuous operation for grain and sugar processing plants. Regular simple maintenance is required for long service life.

Q10: What spare parts will you supply together with the granule packing machine?

A: We supply a set of free consumable spare parts such as sealing blades, heating strips and sensors, to support your early-stage production after machine arrival.
