✅Feature

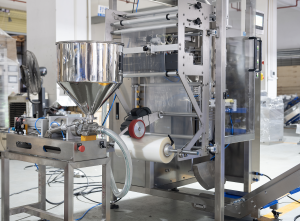

- Matched piston pump filler, accurate filling for thick paste & viscous liquid
- Food grade 304 stainless steel for all food contact components
- PLC touch screen control, recipe storage, fast product changeover

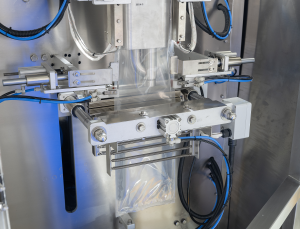

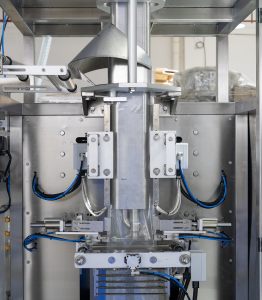

- Automatic bag forming, filling, sealing and cutting
- Stable running, low maintenance, easy disassembly for cleaning
- Adjustable filling volume, bag size and production speed

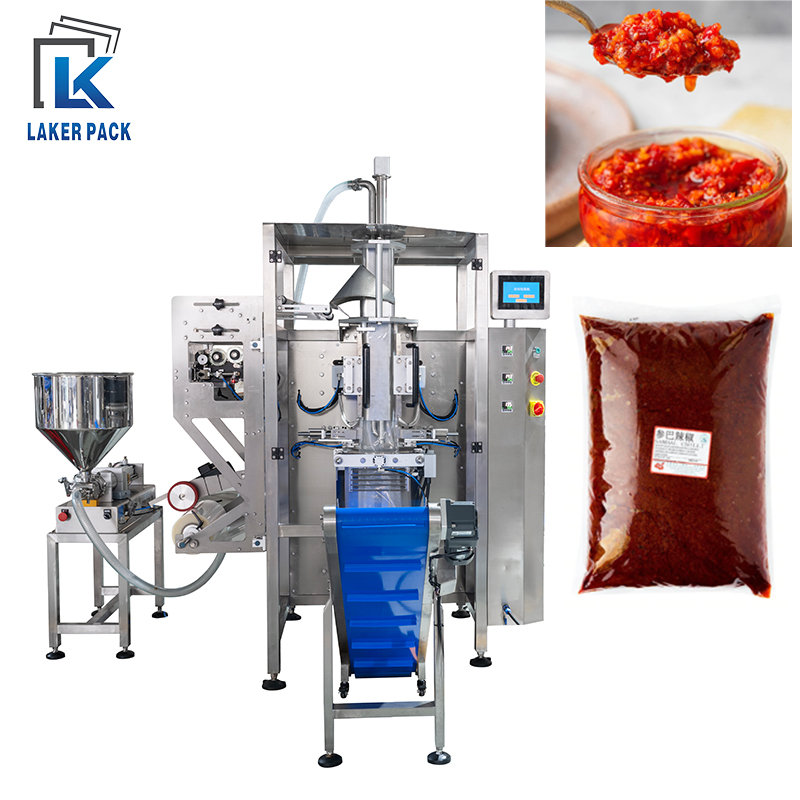

- Suitable for paste with small solid particles, such as meat paste and chili sauce
✅Machine Running Video:
✅Application
◎ Applicable Bag Type: pillow bag, gusset bag, seal type bag, triangle bag, four-side seal bag. three-side seal bag.
◎ Applicable Film Material: a variety of laminated films, single layer PE film. Film thickness range 0.03~0.15mm.
◎ Applicable Packing Materials: liquid objects, such as oli, water, juice, milk, honey, soy sauce, ketchup, tomato sauce, liquid detergent etc.
✅Parameters
| Model | LKV-420 | LKV-520 | LKV-720 | LKV-900 | LKV-1050 | LKV-1200 |
| Film Thickness(mm) | 0.04-0.08 | 0.04-0.12 | 0.04-0.12 | 0.04-0.12 | 0.04-0.12 | 0.04-0.12 |
| Bag Length (mm) | 80-300 | 80-350 | 100-500 | 100-600 | 100-800 | 100-1000 |
| Bag Width (mm) | 60-200 | 100-250 | 180-350 | 260-430 | 290-505 | 290-580 |
| Film Roll Diameter (mm) |
Max.320 | Max.320 | Max.320 | 400 | 400 | 400 |
| Packaging Rate (bags/min) |
5-60 | 5-60 | 5-55 | 5-20 | 5-20 | 5-20 |
| Film Width (mm) | Max.420 | Max.520 | Max.720 | Max.900 | Max.900 | Max.1200 |
| Measurement Range |
150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
-副本.jpg)
✅FAQ
Q: What products can this VFFS sauce machine pack?
A: It can pack tomato sauce, mayonnaise, chili sauce, meat paste, salad dressing and other viscous paste & liquid condiments. It works well for paste containing tiny solid particles.
Q: What filling device is equipped on this vertical packing machine?
A: This machine is matched with piston pump filler, which provides stable and precise volumetric filling for thick paste.
Q: Is the machine food safe for sauce production?
A: All parts touching sauce and paste are made of food-grade 304 stainless steel, meeting food industry hygiene requirements.
Q: What bag style does this machine produce?
A: It makes pillow pouches. The bag dimension can be adjusted on the touch screen.
